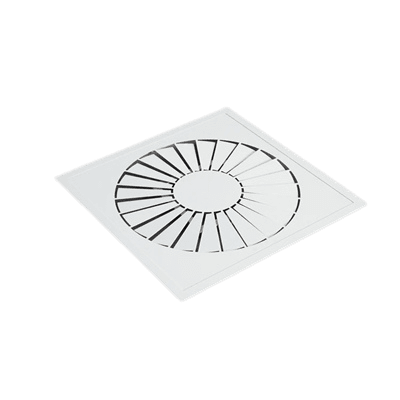

ESS-U Swirl Diffuser

APPLICATION AREAS
Used as a supply air grille for cooling purposes in ventilation systems. The blade angles are fixed; however, they can be manually adjusted by hand. During installation, the use of a Grille Box is strictly required.

IMPORTANT NOTE
Depending on the installation method, the specified dimensions are given as (L × H), where L = width and H = height.

FEATURES
The grilles are manufactured from DKP steel sheet, laser-cut and then formed by setting the blade angles. The outer dimensions of the diffuser are generally suitable for suspended ceilings, typically 595 × 595 mm, while the airflow opening diameters may vary.

INSTALLATION MATERIALS, PACKAGING & TRANSPORTATION
Packaging is carried out using polyethylene film. Since the grilles are fragile and may deform, transportation must be handled with care.

The standard paint color is RAL 9010. Painting in all RAL colors is available upon request.

Modular Design

100% compatibility with different ceiling types

Color Options

Electrostatic paint in all RAL codes

Superior Technical Features

Experience tomorrow's ventilation standards today.

High Quality

First-class aluminum profile manufactured by extrusion method with electrostatic powder coating.

Energy Efficiency

Reduces fan motor load due to low air resistance and provides energy savings.

Long Lifespan

First-day performance and aesthetics for years with corrosion-resistant material selection.

Easy Maintenance

Periodic cleaning and service ease thanks to the quick-detachable core mechanism.

Quiet Operation

Minimum decibel level with design tested in fluid dynamics.

24/7 Support

We are always by your side with after-sales technical service and engineering consultancy.
